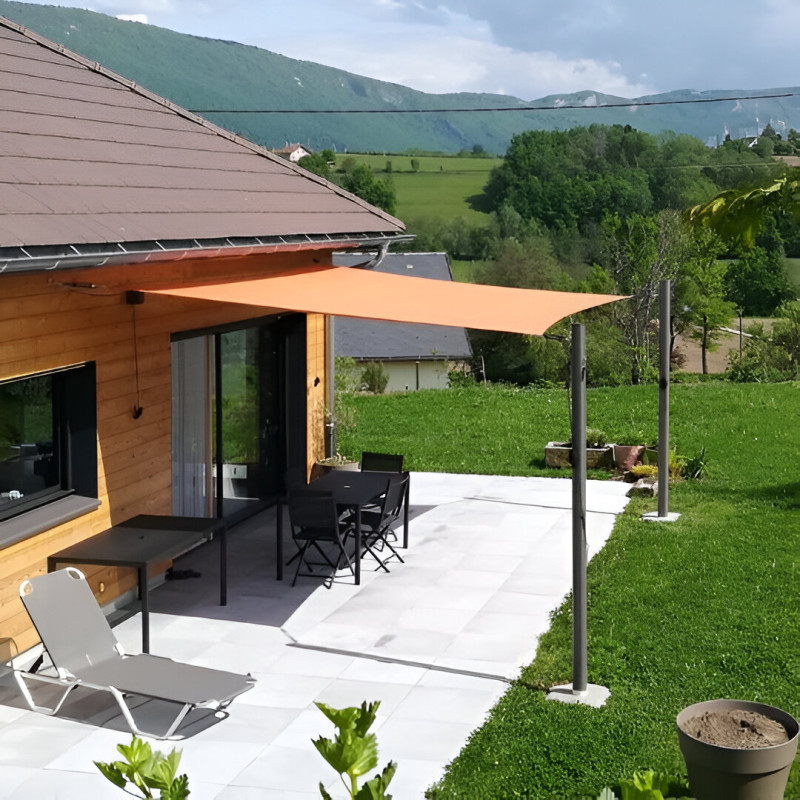

Set of 2 adjustable poles and 2 wall fixings for rectangular shade sails

Do you only have one wall to install your rectangular shade sail on your terrace? No problem! Espace Ombrage offers you a kit adapted to your needs. Composed of 2 wall fixings and 2 adjustable poles, it will allow you to benefit from great flexibility. You can adjust the height of your fabric to adapt to changes in sunlight and thus benefit from continuous protection from morning to night.

Description

Characteristics of the mast

Characteristics of the fixtures

Description

This fixing kit contains everything you need to hang your triangular shade sail between a wall and a mast in a quick, easy and secure way.

Contains 2 wall fixings (short or long) and 2 adjustable pole.

Characteristics of the mast

Pole material: Durable (recycled) aluminium, robust and weatherproof.

Height: 260 cm

Diameter: ovoid (110 x 80 mm)

Weight: 12 to 20 kg depending on the base

Warranty: 2 years

Made in Europe

Characteristics of the fixtures

Type of mounting: Wall mounted

Amplitude: from 45 to 250cm for the long version / 25 to 35cm for the short version

Weight: 500g for the long version and 200g for the short version

Material: 316 stainless steel and rot-proof nautical rope

Warranty: 2 years

Elements included to fix your shade sail

Wall fixtures

Depending on your choice, you will receive a wooden wall mount or a concrete, stone, brick or breeze block wall mount.

Tension system

To tension the sail correctly. Single pulleys for the standard version, double pulleys for the reinforced version or a tensioner for the short version.

The slide

To adjust the height of the fixing point of your shade sail in a few seconds along the entire length of the mast.

The cleat

For winding the rope onto the mast and getting a clean and tidy installation at all times.

Pole attachment for shade cloth as desired

Bases for sealing

In the version to be embedded, the ovoid sleeve to be embedded in concrete is 40cm high. The ovoid pole fits entirely into the sleeve, so to have a 260cm high pole, we deliver a 300cm profile + a 100cm reinforcement which ensures the solidity of the pole.

Material: recycled aluminium. You can increase the strength of your mast by positioning it at an angle.

Screw-on bases

For hard floors such as concrete slabs or terraces with wooden joists. 2 versions: vertical or inclined. The tube measures 50cm.

Material: Galvanised steel. You can complete your installation with a base cover which will cover the screw-on plate, its threaded rods and bolts. This product is optional and will finish your installation on your terrace. The screw-on base can be fixed on a ballast support to avoid any drilling.

Adjustable wall plates

For leaning the pole against a wall, when it is not possible to fix to the ground. You will receive a set of bolts and nuts as well as two wall plates with rings in which the pole will be inserted. The plates are adjustable to fit the tensioning axes of the sail(s).

Material: 316 stainless steel. M10 threaded rods and a chemical sealant are required to ensure the robustness of the installation.

Depending on your installation choices, you will also need additional products.

Spot

Shipping time within 48h
Adapted to the mast
Height adjustable

€59.00

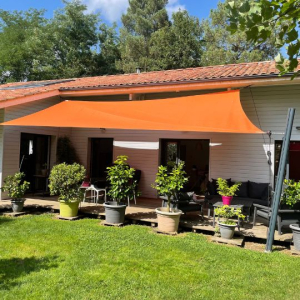

Acryl 300 shade sail

Shipping time : From 1 to 2 weeks
300 g/m²
Waterproof

€299.00

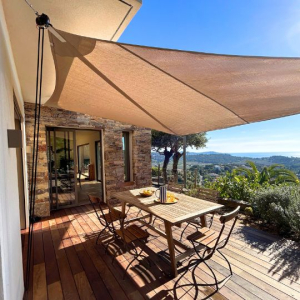

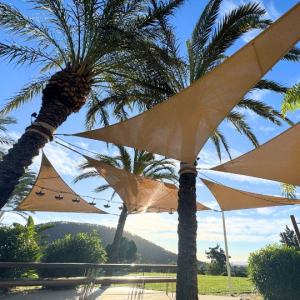

Australe 340

Shipping time : From 1 to 2 weeks
Wind: 80km/h
340 g/m²

€269.00

Stainless steel tackle

Shipping time within 48h
Finishing element
Screw-on

€15.00

Protective cover

Shipping time within 48h
Waterproof
Wintering

€25.00

Baseplate cover for screw-in mast

Shipping time within 48h
90° or 82° mast
Black colour

€15.00

Installation of shade sail fixtures

Wall fixtures

For short wall fixings: allow a tension margin of 25-35 cm in the extension of the diagonals of the shade cloth.

For long wall fixings: allow a minimum margin of 45 cm (and up to a maximum of 2.50 m).

The hole diameter for a concrete wall should be 14 mm and the depth 80 mm.

Adjustable poles

Base to be sealed

Base to be screwed

Adjustable wall plates

Base to be sealed

Step 1: Create a concrete mass 60 to 80 cm deep and about 40 cm in cross-section in which the ovoid sleeve will be embedded. The larger the foundation, the greater the stability of the mast.

Step 2: Then insert the 100 cm galvanised steel reinforcement into the sleeve and the profile.

Here is a video explaining the assembly of the mast to be embedded:

Base to be screwed

Step 1: Provide 4 bolts and 4 threaded rods of 12 mm diameter and 150 to 200 mm length to fix the base. Drill with a 14 mm concrete drill bit and make a chemical seal.

Step 2: Simply slide the pole onto the base. Add a plate cover (available as an accessory) to get a neat look.

Here is a video explaining how to assemble the screw-in mast:

Adjustable wall plates

Step 1: Provide 4 nuts and 4 threaded rods with a diameter of 8 to 10 mm and a length of 100 mm to fix the 2 plates (2 anchoring points per wall plate).

Step 2: Ensure a minimum distance of 70 cm between the 2 plates. Make a chemical seal. Simply insert the mast into the two plates.
